What Is an Analog Circuit: A Lecture on the Language of Continuous Signals

Alright, let’s take a deep breath and step into the world of analog circuits.

You know, it’s funny — we live in a world that’s gone almost completely digital. Every gadget around us, from phones to cars to thermostats, runs on ones and zeros. But if you listen closely — to the sound of your voice, the flicker of a light, or the vibration of a sensor — all of those are analog. The world itself is continuous.

That’s where analog circuits come in. They’re the translators between nature’s continuous world and the digital logic that rules modern electronics.

In order to understand “what is analog circuit?”, we must have understood that it is a circuit consisting of analog electronics to process and produce analog signals.

This circuit is able to produce variable signals continuously with the proportional relationship between voltage or current level and electrical signal. Meaning is, we can generate an analog signal with a variety of scaling.

Let’s Start Simple — What Exactly Is an Analog Circuit?

Analog circuit utilizes a lot of forms of signal to process and convert it to an electrical signal we can read and analyze. For example, some temperature sensors are able to show a continuous signal every time it captures the result.

Electrical signals can give us a lot of information related to voltage, current, frequency, phase, and many more. These signals are processed through an analog circuit with physical forms as an input (light, pressure position, sound, temperature, and more).

If you’ve ever turned the knob on an old stereo and noticed how the sound rises smoothly, not in steps — that’s analog.

An analog circuit deals with voltages or currents that change continuously with time. No jumps, no breaks. Every point on that curve means something.

According to IEEE Standard 100, an analog signal “varies continuously in time and amplitude.”

So, when we talk about analog circuits, we’re talking about systems that can represent any value, not just two. A voltage might be 0.91 V, or 0.911 V, or 0.9112 V — and it all counts.

Now compare that to a digital circuit: it doesn’t care if your voltage is 0.9 or 0.91. It just says, “eh, close enough to 1.”

See the contrast? Analog lives in the gray areas; digital only sees black and white.

Why Should We Care About Analog Circuits Today?

You might be thinking, “Isn’t everything digital now?”

That’s a fair thought. But here’s the truth: nothing digital exists without analog first.

Every digital system starts with analog input — a microphone, a sensor, a camera. Those are all analog. And before the signal becomes binary data, it has to be filtered, amplified, and conditioned.

Guess who does that job? Analog circuits.

So even in the most advanced AI chip, somewhere deep inside, there’s a humble analog amplifier keeping things grounded in the real world.

Unlike digital circuits where an output signal only has two level voltage (represents 0 and 1), the analog circuit produces a signal with any value from a given range and it is unique to deliver different information. Each signal represents different types of phenomenon.

A temperature sensor can be represented by an electrical signal with a proportional calculation, for example one volt can represent one degree Celsius. We can further modify it to our liking by changing the scaling, say ten degree Celsius is represented by one volt.

Not only the difference of the encoding information with digital circuits, their processing method is also different. Analog circuit is able to act as an amplifier, filter, limiter, and others.

Keep in mind that using an analog circuit means we need to be careful of the noise factor. The greater the noise, the greater disruption to our signal processing and output. On the other hand, a digital circuit is not affected by the presence of noise until a certain threshold level.

The Big Picture: Analog vs Digital (But Not Too Deep Yet)

Let’s draw a mental picture here.

I won’t drag us too deep into digital today — that’s a separate lecture.

For now, just remember: analog talks to nature; digital talks to machines.

Even with the popularity of digital circuits, analog circuits are still used in many industry sectors such as power electronics, biomedical engineering, telecommunications, and instrumentation such as electrical measurement.

Analog circuit is an electrical circuit that utilizes and produces a signal that varies continuously from zero to maximum voltage supply input to the circuit. This is the basic difference with a digital circuit where it utilizes binary signals, 0 or 1.

If an analog circuit can produce zero voltage to maximum voltage supply input continuously, a digital circuit can only produce 0 or maximum voltage supply input. With a digital circuit we can generate True (1) and False (0) logic programs.

How to Design Analog Circuits

Analog circuits are typically more complex to design compared to digital circuits. More skills are required to build a proper analog circuit. It is built from active and passive components such as resistor, inductor, capacitor, transistor, diode, and many more.

Analog circuits can be either AC circuits or DC circuits based on their input.

An analog circuit operates purely with analog signals, a signal that has continuous variable values forming a specific wave depending on how we built it.

Analog signals resemble our real world phenomenon compared to digital circuits. Sound, light, vibration, and all the things that can be represented by a waveform are all electromagnetic spectrum. This electromagnetic spectrum is an analog thing.

Every physical phenomenon is felt and processed with continuous waves and thus the analog circuit is proportional to the world.

It is really easy to build an analog circuit with all the known electrical circuit elements. It is far easier than building a digital circuit with the same components. But it does not mean it has no weakness.

When talking about integrated circuits, a digital circuit is far easier to build since we have been introduced to digital components along with how we make it programmable. This is the drawback of an analog circuit, it is not as automated as a digital circuit.

Analog circuits are also prone to noise in its surrounding environment. Its error rate is significantly higher caused by higher complexity, variability, limited assessment of reliability, less automation, and needs extra analysis to mitigate the error and noise.

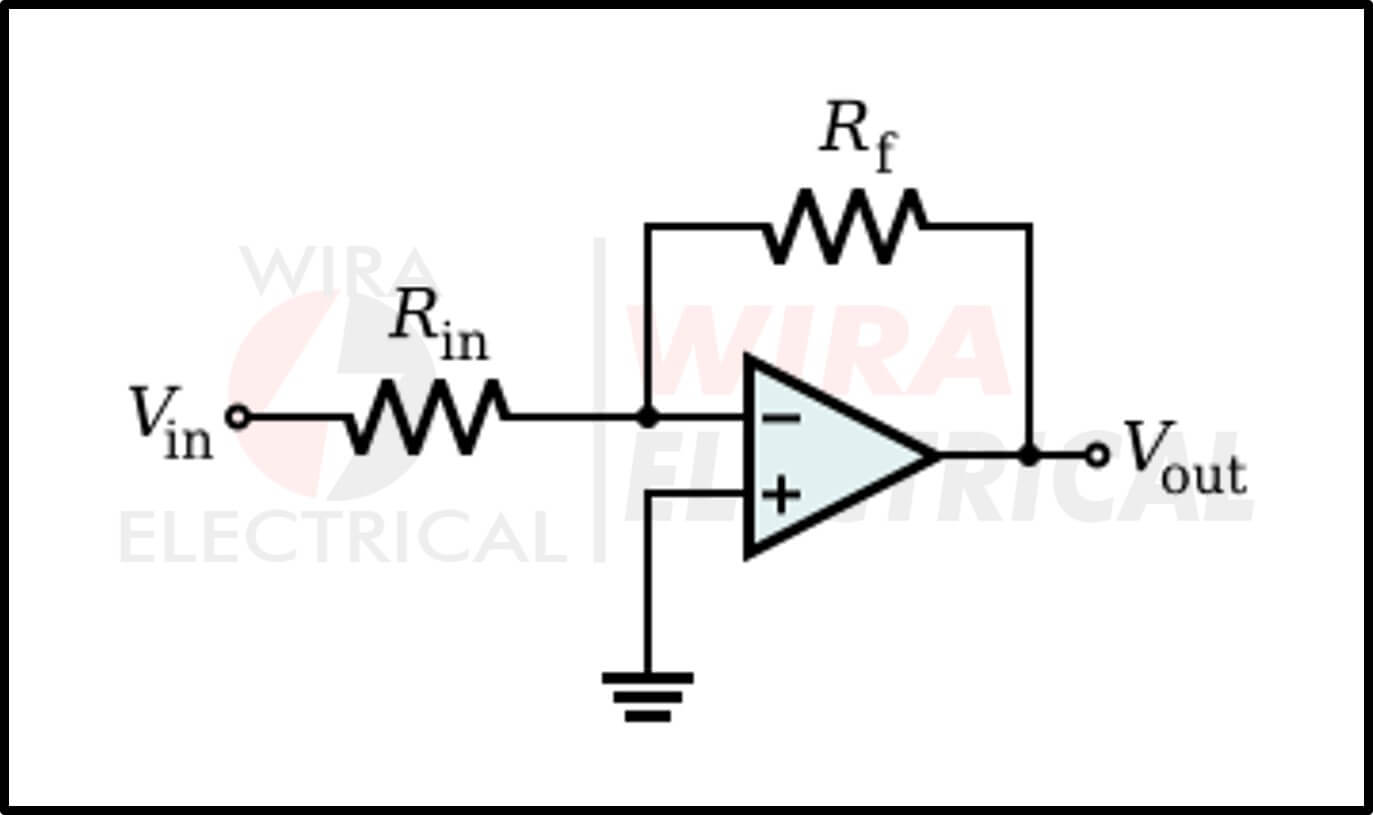

Observe the example circuit below.

This is the most basic example of an operational amplifier, an inverting amplifier. Before we design an analog circuit, we need to be ready with our analytical skills.

Fortunately, analyzing an analog circuit can be done efficiently with our known electrical circuit analysis such as Ohm’s Law, Kirchhoff’s Laws, Node Voltage, Mesh Current, and many more.

Maybe we need to read about what is an ideal op-amp first to grasp the basic idea.

The Nature of Analog Signals

If we really want to learn how to design an analog circuit, we have to familiarize ourselves with its important analog integrated circuit. It is an operational amplifier or op amp for short. This component is very versatile and can be used to build a lot of different analog circuits based on its configuration.

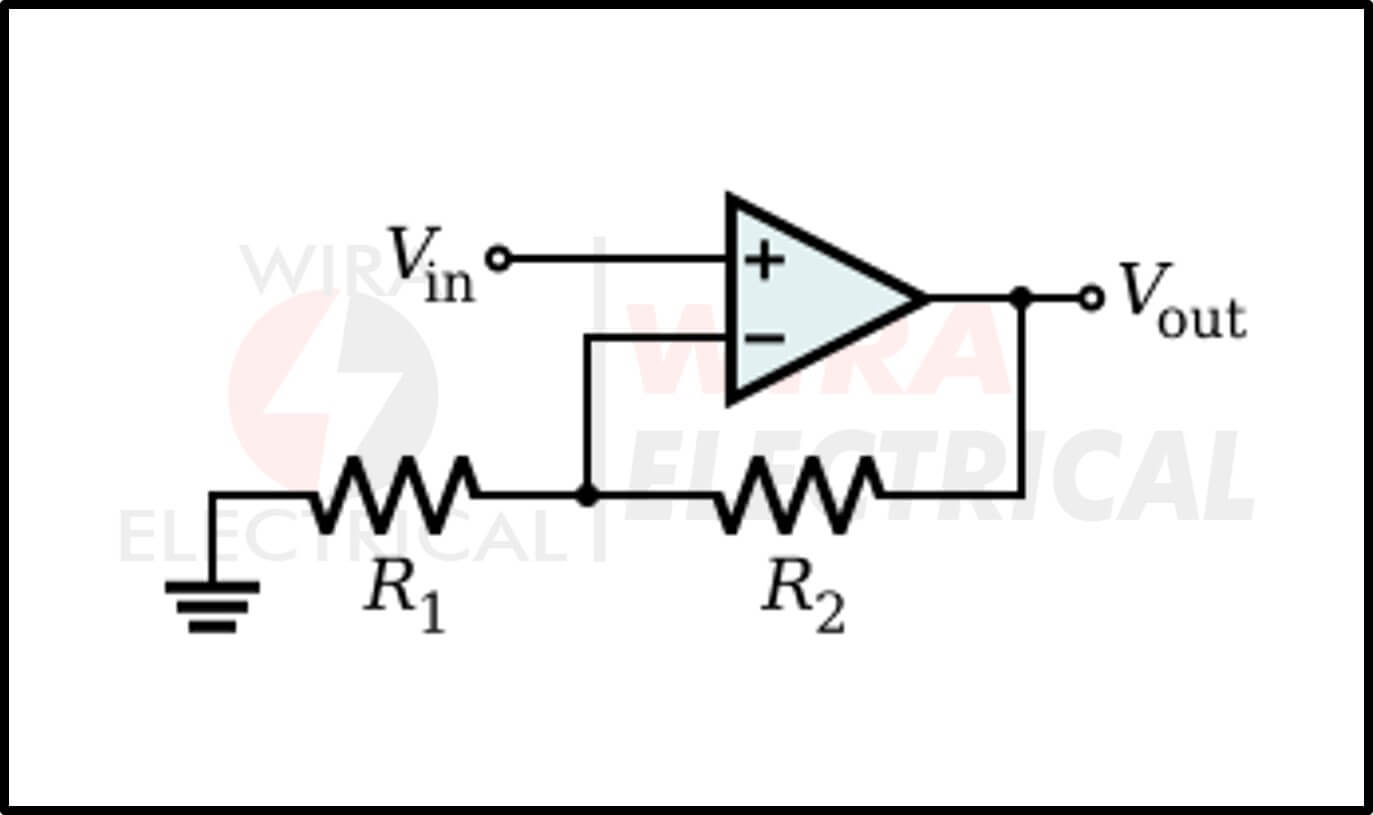

Observe the circuit below.

The triangle is the op amp, and based on its configuration, this is a non-inverting op amp. The input is not inverted since it is supplied to the positive terminal while the negative terminal is supplied by feedback from its output.

Opposed to this, an inverting op amp will invert the input waveform with a simple modification of the example above. Observe the circuit below.

The input is supplied to the negative terminal, thus it will be inverted based on our configuration of the remaining components.

Operational amplifier can be crafted further into the most common types:

• Summing amplifier
• Difference amplifier

With more advanced study and analysis, we can even make circuit filters easier with an operational amplifier, as an active filter.

The real question, is an analog circuit slower?

Linear and Nonlinear: The Two Faces of Analog

Now, analog circuits come in two flavors: linear and nonlinear.

• Linear means the output changes proportionally to the input. A resistor obeys Ohm’s Law,

\( V = I \times R \)

Double the voltage, and you double the current.

• Nonlinear circuits break that proportionality. Think of a diode — it barely conducts until you cross 0.7 V, then suddenly lets current through.


And transistors? They’re even more nonlinear. Yet, ironically, we rely on that nonlinearity to build amplifiers.

So analog design often means dancing on the edge between linearity and distortion.

The Essential Components — Our Building Blocks

If you want to speak analog, here’s your vocabulary list:

1. Resistors – They control current and set bias points.
2. Capacitors – They store energy, block DC, pass AC.
3. Inductors – They store magnetic energy and resist current change.
4. Diodes – They let current flow in one direction only.
5. Transistors – The heart of amplification and switching.
6. Operational Amplifiers (Op-Amps) – The multitools of analog design.

Now, a quick note about op-amps — you’ll see them everywhere.

In a simple inverting amplifier, the voltage gain is:

\( A_v = – \frac{R_f}{R_{in}} \)

If you double the feedback resistor, you double the gain. Simple, elegant, predictable.

That’s why op-amps are beloved: with just two resistors, you can build a stable, linear amplifier.

How Analog Circuits Work — Let’s Walk Through an Example

Imagine you’re designing a small audio amplifier.

1. A microphone converts sound into a voltage — a few millivolts at best.
2. An amplifier stage boosts that to a usable level using transistors or op-amps.
3. Capacitors remove DC offsets so you only pass the AC sound wave.
4. A power stage drives the speaker, turning those voltages back into sound.

Notice something? Every stage deals with a continuous signal.

Every microvolt matters. Any little interference or offset gets amplified right along with the music.

That’s both the charm and the challenge of analog electronics.

Key Design Concepts You’ll Always Encounter

1. Biasing and the Q-Point

Transistors don’t behave nicely unless they’re biased correctly.

The Q-point, or quiescent point, sets the right operating region so your signal doesn’t clip or distort.

If you bias too low — the waveform bottoms out. Too high — it saturates.

Finding that sweet spot is what analog designers do instinctively after years of tweaking.

IEC 60747 gives the reference specs for semiconductors, including how they behave across temperature and current.

2. Feedback

Ah, feedback — one of the most elegant concepts in electronics.

Feed a portion of your output back to the input, and you can control gain, stabilize performance, and tame distortion.

It’s the principle that turned amplifiers from unstable beasts into precise instruments.

3. Impedance Matching

When transferring power or signals, you want the source and load impedances to align:

\( P_{max} = \frac{V^2}{4R} \)

That’s especially vital in RF circuits. Get it wrong, and half your signal reflects back like an echo down a tunnel.

4. Noise

Every analog designer eventually develops a love–hate relationship with noise.

There’s thermal noise, shot noise, flicker noise — all unavoidable.

But with careful grounding and filtering, you can keep it under control.

5. Stability

An amplifier that oscillates is basically a radio you never wanted.

We use compensation capacitors and careful layout to prevent self-oscillation. It’s part art, part physics.

Major Types of Analog Circuits

Here’s a broad overview — these are your main categories:

These often combine. A radio receiver, for instance, has amplifiers, filters, and demodulators all in one chain.

The Not-So-Perfect World of Real Components

Real components misbehave.

A resistor marked 10 kΩ might actually measure 9.8 kΩ. A capacitor’s value shifts with temperature. A transistor’s gain varies with batch.

Analog design lives in that uncertainty.

You never design for a single number — you design for ranges.

You assume a ±10% tolerance and make sure the circuit still works.

That’s why lab testing remains essential. SPICE simulations are great, but reality always adds its own twist.

Real-World Applications (You See Them Everywhere)

1. Audio Systems

Every microphone, preamp, and speaker chain runs on analog.

Even in digital mixing consoles, the input stage — that little preamp before the ADC — is purely analog.

2. Industrial Automation

Sensors measure temperature, pressure, or vibration. The signals are analog first, filtered and scaled before any PLC sees them.

3. Medical Equipment

ECG and EEG machines detect voltages in the microvolt range.

Analog front-ends amplify these signals with incredible precision, complying with IEC 60601 safety standards.

4. Power Systems

Power supplies, battery chargers, and motor drives all rely on analog feedback loops to maintain stability and efficiency.

Analog vs Digital: A Balanced View

So yes — digital is easier to standardize and reproduce. But analog connects you to physics directly. It’s the heartbeat of every system.

Common Mistakes Beginners Make

1. Skipping Decoupling Capacitors – Without them, op-amps may oscillate.
2. Ignoring Ground Loops – Keep one clean ground point, not many noisy ones.
3. Overusing Breadboards – Parasitic capacitance can ruin high-frequency behavior.
4. Neglecting Temperature Effects – Always test hot and cold.
5. Chasing Perfection – Analog isn’t perfect, and that’s fine. Aim for stable and predictability.

Tips for Smarter Analog Design

• Simulate to learn, but build to confirm.
• Label every node clearly — messy schematics breed mistakes.
• Use feedback wisely; too much can destabilize your circuit.
• Check the bandwidth. If your amplifier clips high frequencies, your waveform will distort.
• Protect every input and output from spikes or static.

And here’s an underrated one: take notes. Write down what worked and what didn’t. Those scribbles become gold years later.

The Art Behind the Equations

You know, after a while, you stop seeing resistors and op-amps as “components.”

You start to feel their behavior.

When you hear noise in a prototype, you’ll know whether it’s grounding, biasing, or layout before even touching a probe.

That intuition is the mark of an analog engineer.

It’s not just about equations — it’s about listening to the circuit, understanding its temperament. Because analog circuits are alive in a way digital ones just aren’t.

Wrapping Up: Why Analog Still Matters

Let’s close the loop.

Analog circuits are what let us sense, amplify, and control the real world.

They’re governed by solid laws — Ohm’s, Kirchhoff’s, and the principles of feedback — but shaped by experience and feel.

Digital may dominate headlines, but analog keeps reality connected.

If you’ve followed along to this point — you’re already thinking like an analog designer. You’re not just memorizing; you’re understanding.

So next time you pick up a circuit board, pause for a second.

That smooth sound, that stable voltage, that clean waveform — that analog quietly doing its job, everywhere, all the time.

Quick FAQ

• IEC 60268-1 – Sound System Equipment
• IEC 60747 – Semiconductor Devices
• IEC 60601 – Medical Electrical Equipment
• IEC 61000 – Electromagnetic Compatibility
• IEEE Standard 100 – Electrical and Electronic Terms
• Sedra & Smith – Microelectronic Circuits
• Horowitz & Hill – The Art of Electronics
