Mutual Inductance and Dot Convention Simple Definition

Mutual inductance and dot convention will be used when we analyze a circuit that has multiple coils in close gap such as transformer.

The circuits we have considered so far may be regarded as conductively coupled because one loop affects the neighbouring loop through current conduction.

When two loops with or without contacts between them affect each other through the magnetic field generated by one of them, they are said to be magnetically coupled.

The transformer is an electrical device designed on the basis of the concept of magnetic coupling. It uses magnetically coupled coils to transfer energy from one circuit to another.

Transformers are key circuit elements. They are used in power systems for stepping up or stepping down ac voltages or currents.

They are used in electronic circuits such as radio and television receivers for such purposes as impedance matching, isolating one part of a circuit from another, and again for stepping up or down ac voltages and currents.

We will begin with the concept of mutual inductance and introduce the dot convention used for determining the voltage polarities of inductively coupled components.

Based on the notion of mutual inductance, we then introduce the circuit element known as the transformer.

We will consider the linear transformer, the ideal transformer, the ideal autotransformer, and the three-phase transformer.

Finally, among their important applications, we look at transformers as isolating and matching devices and their use in power distribution.

Mutual Inductance and Dot Convention

When two inductors (or coils) are in close proximity to each other, the magnetic flux caused by the current in one coil links with the other coil, thereby inducing a voltage in the latter.

This phenomenon is known as mutual inductance.

Let us first consider a single inductor, a coil with N turns. When current i flows through the coil, a magnetic flux ϕ is produced around it in Figure.(1).

Mutual Inductance and Dot Convention

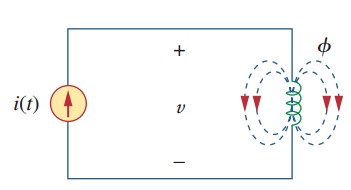

Figure 1. Magnetic flux produced by a single coil with N turns

According to Faraday’s law, the voltage v induced in the coil is proportional to the number of turns N and the time rate of change of the magnetic flux ϕ; that is,

Mutual Inductance and Dot Convention
(1)

But the flux ϕ is produced by current i so that any change in ϕ is caused by a change in the current.

Hence, Equation.(1) can be written as

Mutual Inductance and Dot Convention
(2)

or

Mutual Inductance and Dot Convention
(3)

which is the voltage-current relationship for the inductor. From Equations.(2) and (3), the inductance L of the inductor is thus given by

Mutual Inductance and Dot Convention
(4)

This inductance is commonly called self-inductance because it relates the voltage induced in a coil by a time-varying current in the same coil.

Now consider two coils with self-inductance L1 and L2 that are in close proximity with each other Figure.(2).

Coil 1 has N1 turns, while coil 2 has N2 turns.

Mutual Inductance and Dot Convention

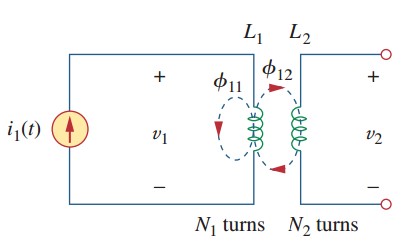

Figure 2. Mutual inductance M21 of coil 2 with respect to coil 1

For the sake of simplicity, assume that the second inductor carries no current.

The magnetic flux ϕ1 emanating from coil 1 has two components: one component ϕ11 links only coil 1, and another component ϕ12 links both coils.

Hence,

Mutual Inductance and Dot Convention
(5)

Although the two coils are physically separated, they are said to be magnetically coupled.

Since the entire flux ϕ1 links coil 1, the voltage induced in coil 1 is

Mutual Inductance and Dot Convention
(6)

Only flux ϕ12 links coil 2, so the voltage induced in coil 2 is

Mutual Inductance and Dot Convention
(7)

Again, as the fluxes are caused by the current i1 flowing in coil 1, Equation.(6) can be written as

Mutual Inductance and Dot Convention
(8)

where L1 = N1 dϕ1/di1 is the self-inductance of coil 1. Similarly, Equation.(7) can be written as

Mutual Inductance and Dot Convention
(9)

where

Mutual Inductance and Dot Convention
(10)

M21 is known as the mutual inductance of coil 2 with respect to coil 1.

Subscript 21 indicates that the inductance M21 relates the voltage induced in coil 2 to the current in coil 1.

Thus, the open-circuit mutual voltage (or induced voltage) across coil 2 is

Mutual Inductance and Dot Convention
(11)

Suppose we now let current i2 flow in coil 2, while coil 1 carries no current in Figure.(3).

Mutual Inductance and Dot Convention
Figure 3. Mutual inductance M12 of coil 1 with respect to coil 2

The magnetic flux ϕ2 emanating from coil 2 comprises flux ϕ22 that links only coil 2 and flux ϕ21 that links both coils.

Hence,

Mutual Inductance and Dot Convention
(12)

The entire flux ϕ2 links coil 2, so the voltage induced in coil 2 is

Mutual Inductance and Dot Convention
(13)

where L2 = N2 dϕ2/di2 is the self-inductance of coil 2.

Since only flux ϕ21 links coil 1, the voltage induced in coil 1 is

Mutual Inductance and Dot Convention
(14)

where

Mutual Inductance and Dot Convention
(15)

which is the mutual inductance of coil 1 with respect to coil 2. Thus, the open-circuit mutual voltage across coil 1 is

Mutual Inductance and Dot Convention
(16)

We will see in the next section that M12 and M21 are equal, that is

Mutual Inductance and Dot Convention
(17)

and we refer to M as the mutual inductance between the two coils. Like self-inductance L, mutual inductance M is measured in henrys (H).

Keep in mind that mutual coupling only exists when the inductors or coils are in close proximity, and the circuits are driven by time-varying sources.

We recall that inductors act like short circuits to dc.

From the two cases in Figures.(2) and (3), we conclude that mutual inductance results if a voltage is induced by a time-varying current in another circuit.

It is the property of an inductor to produce a voltage in reaction to a time-varying current in another inductor near it. Thus,

Mutual inductance is the ability of one inductor to induce a voltage across a neighbouring inductor, measured in henrys (H).

Although mutual inductance M is always a positive quantity, the mutual voltage M di/dt may be negative or positive, just like the self-induced voltage L di/dt.

However, unlike the self-induced L di/dt, whose polarity is determined by the reference direction of the current and the reference polarity of the voltage (according to the passive sign convention), the polarity of mutual voltage M di/dt is not easy to determine, because four terminals are involved.

The choice of the correct polarity for M di/dt is made by examining the orientation or particular way in which both coils are physically wound and applying Lenz’s law in conjunction with the right-hand rule.

Since it is inconvenient to show the construction details of coils on a circuit schematic, we apply the dot convention in circuit analysis.

By this convention, a dot is placed in the circuit at one end of each of the two magnetically coupled coils to indicate the direction of the magnetic flux if current enters that dotted terminal of the coil.

This is illustrated in Figure.(4). Given a circuit, the dots are already placed beside the coils so that we need not bother about how to place them.

The dots are used along with the dot convention to determine the polarity of the mutual voltage. The dot convention is stated as follows:

Mutual Inductance and Dot Convention

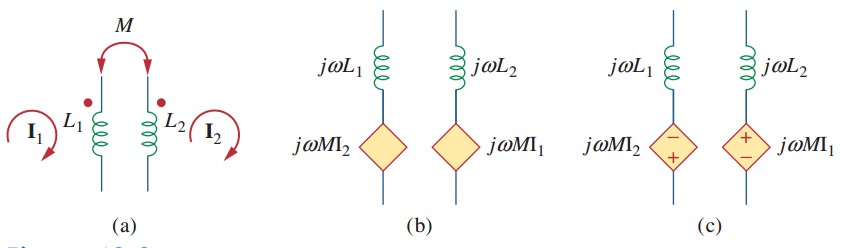

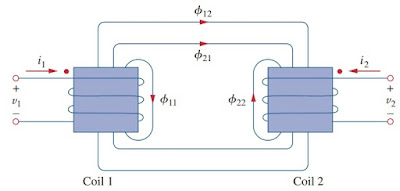

Figure 4. Illustration of the dot convention

If a current enters the dotted terminal of one coil, the reference polarity of the mutual voltage in the second coil is positive at the dotted terminal of the second coil.

Alternatively,

If a current leaves the dotted terminal of one coil, the reference polarity of the mutual voltage in the second coil is negative at the dotted terminal of the second coil.

Thus, the reference polarity of the mutual voltage depends on the reference direction of the inducing current and the dots on the coupled coils.

Application of the dot convention is illustrated in the four pairs of mutually coupled coils in Figure.(5).

For the coupled coils in Figure.(5a), the sign of the mutual voltage v2 is determined by the reference polarity for v2 and the direction of i1 .

Since i1 enters the dotted terminal of coil 1 and v2 is positive at the dotted terminal of coil 2, the mutual voltage is +M di1/dt.

For the coils in Figure.(5b), the current i1 enters the dotted terminal of coil 1 and v2 is negative at the dotted terminal of coil 2.

Mutual Inductance and Dot Convention
Figure 5. Examples illustrating how to apply the dot convention.

Hence, the mutual voltage is −M di1/dt. The same reasoning applies to the coils in Figure.(5c) and (5d).

Figure.(6) shows the dot convention for coupled coils in series. For the coils in Figure.(6a), the total inductance is

Mutual Inductance and Dot Convention
(18)

For the coil in Figure.(6b)

Mutual Inductance and Dot Convention
(19)

Now that we know how to determine the polarity of the mutual voltage, we are prepared to analyze circuits involving mutual inductance.

Mutual Inductance and Dot Convention
Figure 6. Dot convention for coils in series; the sign indicates the polarity of the mutual voltage: (a) series-aiding connection, (b) series-opposing connection.

As the first example, consider the circuit in Figure.(7).

Mutual Inductance and Dot Convention

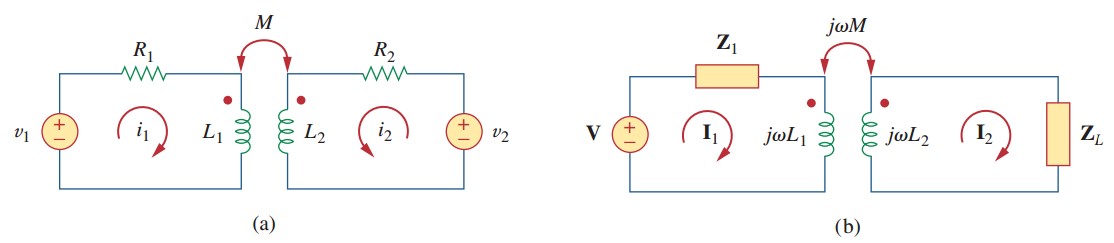

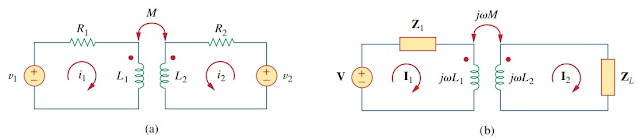

Figure 7. Time-domain analysis of a circuit containing coupled coils.

Applying KVL to coil 1 gives

Mutual Inductance and Dot Convention
(20a)

For coil 2, KVL gives

Mutual Inductance and Dot Convention
(20b)

We can write Equation.(20) in the frequency domain as

Mutual Inductance and Dot Convention
(21a)
Mutual Inductance and Dot Convention
(21b)

As a second example, consider the circuit in Figure.(8).

Mutual Inductance and Dot Convention
Figure 8. Frequency-domain analysis of a circuit containing coupled coils.

We analyze this in the frequency domain. Applying KVL to coil 1, we get

Mutual Inductance and Dot Convention
(22a)

For coil 2, KVL yields

Mutual Inductance and Dot Convention
(22b)

Equations.(21) and (22) are solved in the usual manner to determine the currents.

At this introductory level, we are not concerned with the determination of the mutual inductances of the coils and their dot placements.

Like R, L, and C, calculation of M would involve applying the theory of electromagnetics to the actual physical properties of the coils.

In this text, we assume that the mutual inductance and the placement of the dot are the “givens” of the circuit problem, like the circuit components RL, and C.

Mutual Inductance Examples

For better understanding let us review the examples below.

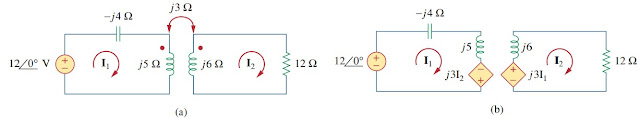

1. Calculate the phasor currents I1 and I2 in the circuit of Figure.(9).

Mutual Inductance and Dot Convention
Figure 9

Solution:
For coil 1, KVL gives

Mutual Inductance and Dot Convention

or

Mutual Inductance and Dot Convention
(1.1)

For coil 2, KVL gives

Mutual Inductance and Dot Convention

or

Mutual Inductance and Dot Convention
(1.2)

Substituting this in Equation.(1.1), we get

Mutual Inductance and Dot Convention

or

Mutual Inductance and Dot Convention
(1.3)

From Equations.(1.2) and (1.3),

Mutual Inductance and Dot Convention

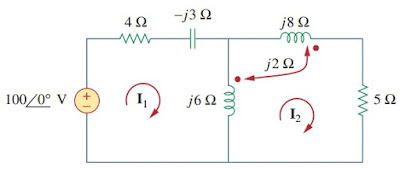

2. Calculate the mesh currents in the circuit of Figure.(10).

Mutual Inductance and Dot Convention
Figure 10

Solution:
The key to analyzing a magnetically coupled circuit is knowing the polarity of the mutual voltage.

We need to apply the dot rule. In Figure.(10), suppose coil 1 is the one whose reactance is 6 Ω, and coil 2 is the one whose reactance is 8 Ω.

To figure out the polarity of the mutual voltage in coil 1 due to current I2, we observe that I2 leaves the dotted terminal of coil 2.

Since we are applying KVL in the clockwise direction, it implies that the mutual voltage is negative, that is, −j2I2.

Alternatively, it might be best to figure out the mutual voltage by redrawing the relevant portion of the circuit, as shown in Figure.(11a), where it becomes clear that the mutual voltage is V2 = −2−jI2.

Mutual Inductance and Dot Convention

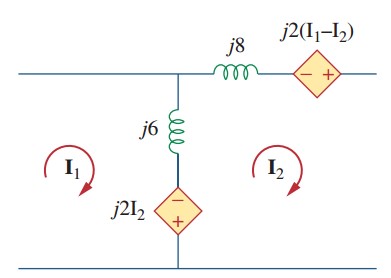

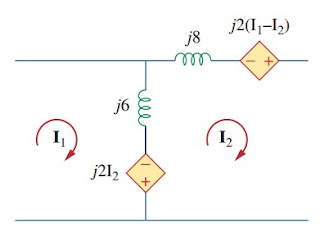

Figure 11

Thus, for mesh 1 in Figure.(10), KVL gives

Mutual Inductance and Dot Convention

or

Mutual Inductance and Dot Convention
(2.1)

Similarly, to figure out the mutual voltage in coil 2 due to current I1 , consider the relevant portion of the circuit, as shown in Figure.(11b).

Applying the dot convention gives the mutual voltage as V2 = −jI1 . Also, current I2 sees the two coupled coils in series in Figure.(10); since it leaves the dotted terminals in both coils, Equation.(8) applies.

Therefore, for mesh 2, KVL gives

Mutual Inductance and Dot Convention

or

Mutual Inductance and Dot Convention
(2.2)

Putting Equations.(2.1) and (2.2) in matrix form, we get

Mutual Inductance and Dot Convention

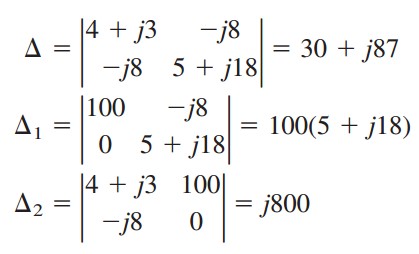

The determinants are

Mutual Inductance and Dot Convention

Thus, we obtain the mesh currents as

Mutual Inductance and Dot Convention

Have you understood what is mutual inductance? Don’t forget to share and subscribe! Happy learning!

Reference:  Fundamentals of electric circuits by Charles K. Alexander and Matthew N. O. Sadiku
