Electrical Energy: A Practical Explanation for Engineers, Technicians, and Anyone Curious About How It Works
If you’ve spent time around electrical systems, you’ve probably heard people throw around the words power and energy as if they’re twins. It happens everywhere—toolbox meetings, training sessions, even in design reviews. And honestly, unless someone broke it down clearly early on, it’s easy to blend the two.
But once the concept of electrical energy clicks, a lot of other things fall neatly into place. Suddenly utility bills make logical sense. Equipment sizing becomes less intimidating. And the infamous “why kWh and not watts?” The question finally gets a satisfying explanation.
Let’s go through it the way professionals tend to learn: start with intuition, step into the formal definition, and then connect it to the real world.
Understanding Electrical Energy the Simple Way
Electrical energy is basically the total work done when charges move through a circuit. That’s the formal version. But most people “get it” quicker with a simple analogy.
Think of water:
- water pressure → voltage
- flow rate → current
- total water delivered over time → energy
Energy is how much water actually ends up in the bucket.
That separation alone clears up a surprising amount of confusion.
What is the definition of electrical energy?
Electrical energy is an energy that is generated when electrons are moving from one point to another point. This energy is simply produced by the movement of electrons or charges.
Engineering Definition (But Not Written Like a Standards Book)
A more precise description—without sounding like a memorization prompt—is:
Electrical energy is the amount of work done by an electric current as it moves through a voltage difference during a period of time.
This aligns with IEC and IEEE terminology because it’s tied to real, measurable quantities.
You’ll encounter two main forms:
- Potential electrical energy — stored energy, like what’s inside a battery or a charged capacitor.
- Kinetic electrical energy — energy that shows up when charges are actually moving.
Both appear constantly in design work, even if we don’t say the names out loud every day.
In other words, electrical energy is the energy converted from the kinetic energy or potential energy of the electrical charges.
Electrical energy is energy related to forces on electrically-charged particles and the movement of those particles. This energy is supplied by the combination of electrical current and electric potential that is delivered by an electrical circuit.
There are several types of electricity, some of them are static electricity and dynamic electricity.
Energy vs Power: Clearing the Fog
A side-by-side view usually makes this stick better:
Concept | Meaning | Units | Analogy |
Power | Rate at which work is performed | W or kW | Speedometer |
Energy | Total work done | J or kWh | Odometer |
A 2 kW motor can draw 2 kW.
Run it for one hour → 2 kWh of energy consumed.
Utilities care about energy, because that’s what represents real usage.
Electrical Energy Formulas (And When They’re Used)
Different situations call for slightly different expressions, but they all trace back to the same core idea.
1. The General Relationship
\( E = P \times t \)
2. Using Voltage and Current
\( E = V \times I \times t \)
3. For AC Systems
The formula working behind most industrial meters:
\( E = V \times I \times t \times pf \)
Power factor quietly influences real consumption, yet it still gets forgotten in some design notes.
4. Joules
\( 1 \mbox{kWh} = 3.6 \times 10^6 J \)
You don’t see engineers converting to Joules very often, but academically it matters.
How Electrical Energy Behaves in a Circuit (Broken Down Step-by-Step)
Sometimes the cleanest path is a simple walkthrough:
- Apply voltage → an electric field forms.
- That field creates potential energy.
- Close the circuit → charges move.
- As they move through a load, work is done (light, heat, torque, etc.).
- Add up that work over time → electrical energy.
This sequence is basically the foundation of everything from power grids to handheld gadgets.
A Practical Example (With Realistic Numbers)
Take a 120 W ceiling fan that runs about 5 hours a day.
Power = 120 W = 0.12 kW
Time = 5 h
\( E = 0.12 \times 5 = 0.6 \mbox{kWh} \)
Monthly energy:
\( 0.6 \times 30 = 18 \mbox{kWh} \)
This is the kind of quick calculation you use during a site audit or while estimating solar capacity.
Different Forms of Electrical Energy
Electrical energy shows up in several flavors:
- Potential — stored charge
- Kinetic — moving charge
- Solar-to-electrical — PV modules
- Chemical-to-electrical — batteries & fuel cells
- Mechanical-to-electrical — generators
These forms sit at different points in generation, storage, and distribution systems.
Where Electrical Energy Comes From
What engineers typically deal with in the field:
- Gas/thermal plant
- Hydroelectric stations
- Nuclear facilities
- Solar PV
- Wind turbines
- Geothermal systems
- Fuel cells and microgeneration setups
Different countries lean on different mixes, but the operating principles are universal.
Electrical Energy in Circuits (Engineering Perspective)
When energy is discussed in reports or calculations, it usually comes down to:
- voltage
- current
- impedance
- power factor
- operating duration
These affect cable sizing, transformer loading, UPS and battery selection, generator ratings, and protective coordination.
Energy directly influences thermal stress and long-term equipment aging.
Why Billing Uses kWh Instead of Watts
Power tells you what could be consumed.
Energy tells you what was consumed.
Watt-hours (or kilowatt-hours) capture both “rate” and “duration,” which makes billing fair and measurable.
Where Electrical Energy Appears in Daily Practice
Residential
- Lighting
- HVAC
- Refrigerator
- EV charging
Commercial
- Elevators
- Chillers
- Office equipment
- Data center rack
Industrial
- Motors and drives
- Welders
- Heating equipment
- Processing systems
Power Systems
- Transmission losses
- Substation operation
- Transformer efficiency
- Grid balancing
If electrons move and a load exists, energy is involved.
Kinetic vs Potential (Quick Comparison)
Feature | Kinetic | Potential |
State | Charges moving | Charges stored |
Typical Device | Motor, appliance | Battery, capacitor |
Circuit Condition | ||
Usage | Active operation | Storage |
Electrical Energy Conversion Examples
You see these constantly:
- Electricity → Light (LEDs)
- Electricity → Motion (motors)
- Electricity → Heat (heaters)
- Electricity → Chemical (charging a battery)
- Electricity → Magnetic fields (transformers)
No energy disappears—it only moves into a different form.
Electrical Energy Examples

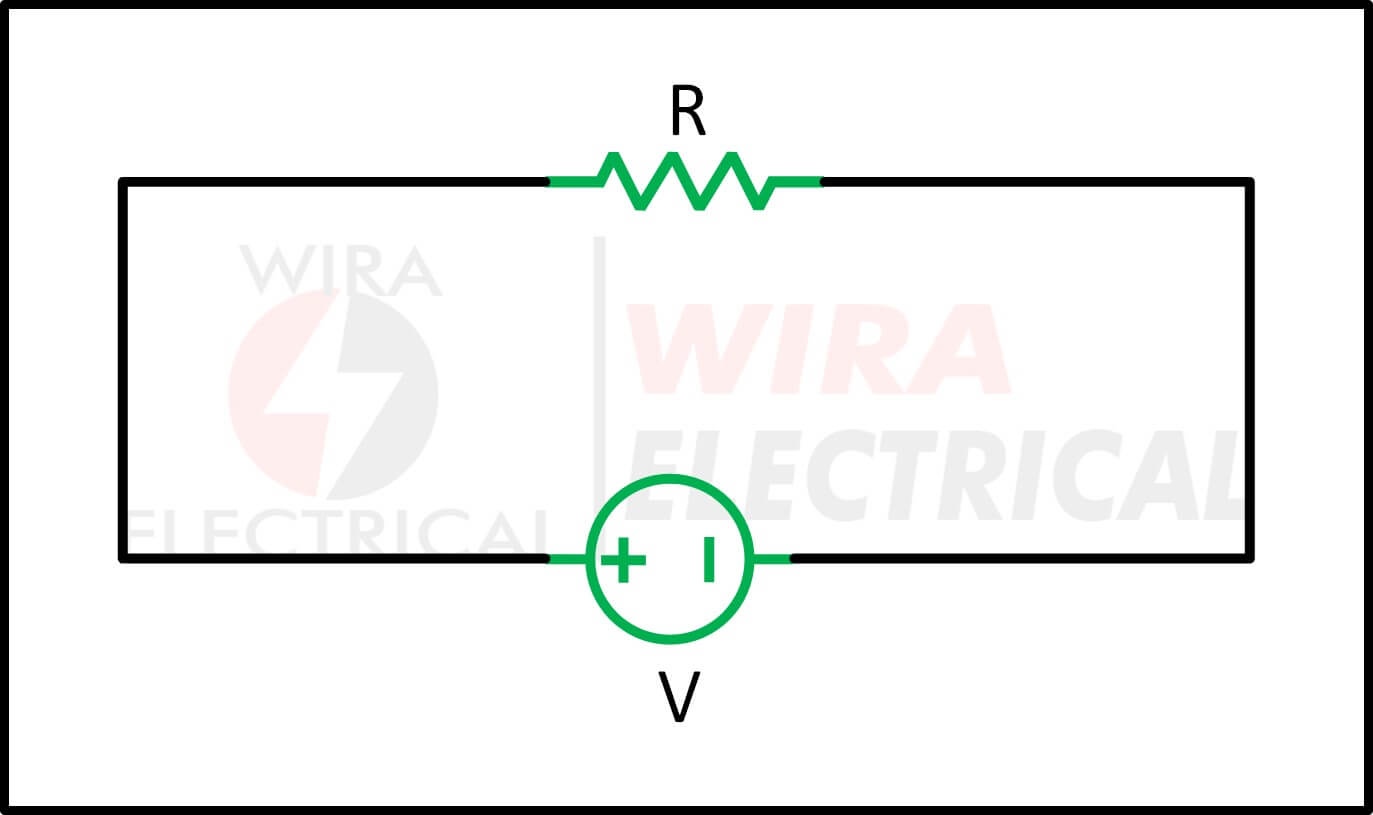

In order to make us understand the definition of electrical energy, observe a simple DC circuit below.

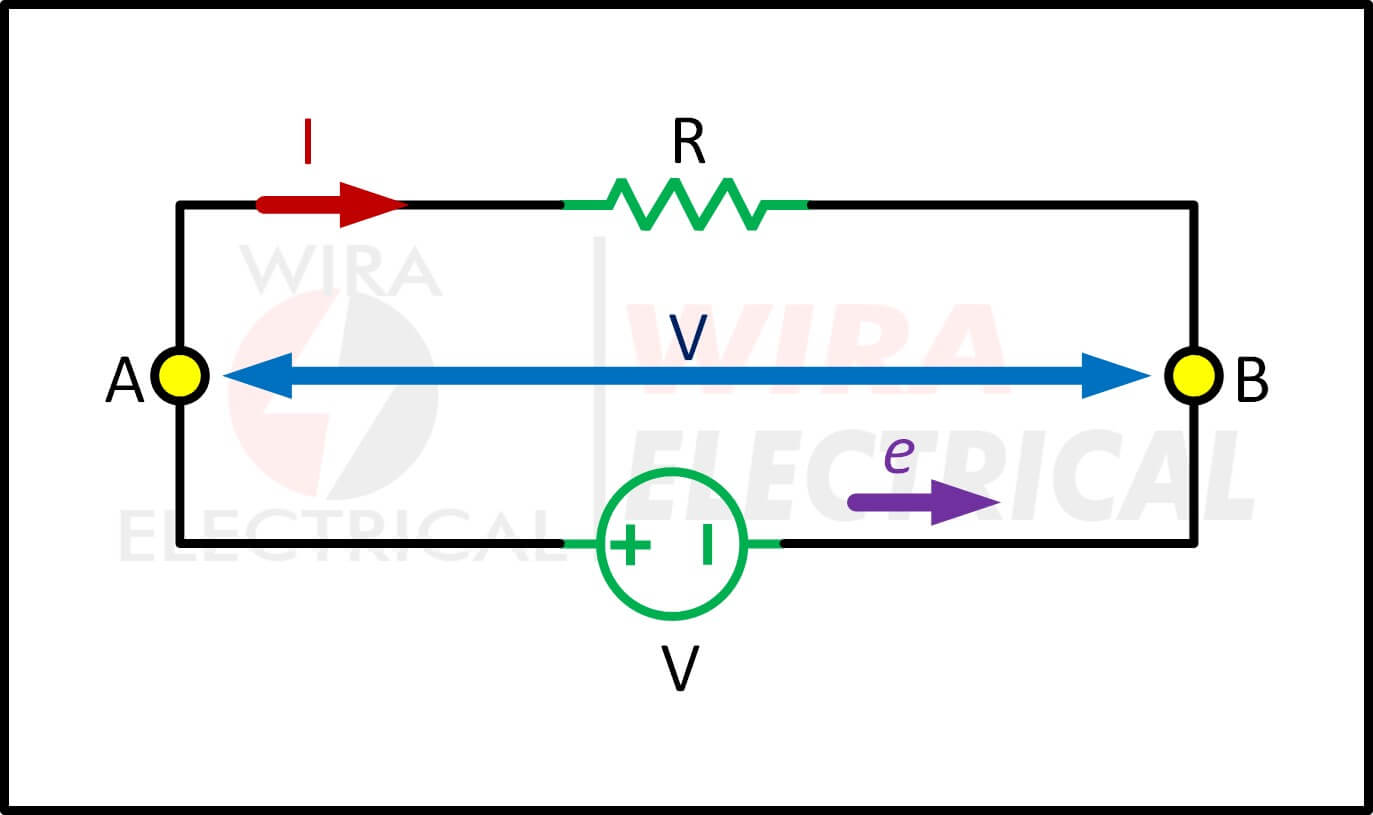

When there is a potential difference (V) between point A and B, the electrical current ( \( I \) ) will start moving from one point to another point, in this case from point A to B, from positive pole to the negative pole. These moving electrons ( \( e \) ) happen in a particular time ( \( t \) ).
Keep in mind that electrons (e) are moving from the negative pole, but to make it convenient, the electric current is illustrated flowing from the positive pole (higher potential) to negative pole (lower potential).
Let us say the potential at the point A is higher than the point B, thus at point A there are less electrons than at point B.
\( V_A > V_B \)
Then the electrical current will flow from point A to point B, the electrons (e) will flow in the opposite direction. Electrical current is the flow rate of charge through a conductor.
Then, we can measure the electric current by
\( I = \frac{\Delta Q}{\Delta t} \)
Where:
\( I \) = electric current, measured in Ampere (A)
\( Q \) = electric charges, measured in Coulomb (C)
\( t \) = time, measured in seconds
Translating the equation above, an electric current ( \( I \) ) is the quantity of electric charges ( \( Q \) ) moving through a conductor in a given time ( \( t \) ).
The voltage is measured by the Work done (W) by the electrical charge divided by the electrical charges in the circuit ( \( Q \) ).
\( V = \frac{W}{Q} \)
Where:
\( V \) = voltage or potential difference, measured in Volts (V)
\( W \) = work done, measured in Joule (J)
\( Q \) = electrical charges, measured in Coulomb (C)
We rearrange the equation into
\( W = V \times Q \)
And
\( Q = I \times t \)
Thus,
\( W = V \times I \times t \)
Hence,
$$
\begin{aligned}
W &= P \times t \\
&= I^2 \times R \times t \\
&= \frac{V^2}{R}\times t
\end{aligned}
$$
Where
\( P \) = electrical power , measured in Watts (W)
\( I \) = electrical current, measured in Amperes (A)
\( t \) = time, measured in seconds (s)
This is why the unit of electrical energy ( \( W \) ) can either be Joule ( \( J \) ) or watt-second.
Furthermore,
Electrical energy is an energy consumed in an electrical energy where one Joule or watt-second is when the current flowing through the circuit exactly at one ampere for one second for one volt applied across it.
Maybe we are not familiar with Joule or watt-second, but observing your electric meter installed in your house, you will find kWh or kilowatt-hour. This is the same with watt-second but with greater scale.
$$
\begin{aligned}1 \mbox{kWh} &= 1000 \times 60 \times 60 \mbox{Watt-seconds} \\
&= 36 \times 10^5 \mbox{Ws or Joule}\\
1 \mbox{kWh} &= 3.6 \mbox{MJ}\\
1 \mbox{kWh} &= 1 \mbox{unit}
\end{aligned}
$$
Pros and Cons
Advantages
- Clean at the point of use
- Efficient distribution
- Easy to measure and control
- Scales from microchips to high-voltage grids
- Supports automation and digital systems
Disadvantages
- Generation can be pollutive
- Requires large infrastructure
- Dangerous without proper safeguards
- Storage tech is still costly
- Sensitive to harmonics and poor power quality
Practical Tips and Common Mistakes
- Separate power and energy correctly — this prevents many design oversights.
- Watch power factor — poor pf raises current unnecessarily.
- Stick to the right units — W/Wh vs kW/kWh.
- Use logged measurements for audits — spikes hide in short intervals.
- Battery sizing should focus on Wh, not Ah alone.
- Duty cycles matter — not all loads run continuously.
- Thermal stress adds up — more energy processed → faster aging.
Conclusion
Electrical energy isn’t just a textbook idea—it’s the backbone of every system we design or troubleshoot. Once you grasp what it really represents, many parts of electrical engineering become more intuitive: from understanding bills to selecting equipment to planning upgrades.
Electrical energy is one form of an energy that is generated by the movement of electric charges, or electrons through a conductor. Electrical energy can be converted into light, heat, mechanical energy, sound, and many more.
How does electrical energy work?
The movement of electrical charges is what we know by electrical current. The electrical current gives every point in an electrical circuit a charged particle. The potential difference between two points is what we know by electrical voltage.
The electrical energy is measured by the value of voltage, electrical current, and time. This is why electrical energy is measured in Joules, watt-hours, or kilowatt-hours.
Electrical energy can be converted into
- Heat = a heater
- Light = a light bulb
- Mechanical = an electric motor.
Since electrical energy can be generated with renewable sources, this energy is efficient and has minimum environmental impact.
FAQ
1. What is electrical energy?
The total work performed as current flows through a load over time.
2. How is it different from power?
Power is the rate; energy is the accumulated amount.
3. Why measure in kWh?
It’s a practical unit for real consumption—Joules get unwieldy.
4. Can electrical energy be stored?
Yes, but each method (battery, capacitor, magnetic storage) has its limits.
5. Does the power factor change energy usage?
Yes—low pf increases current and losses, which shows up in real energy consumption.
References
- IEC 60364 – Low-voltage electrical installations
- IEEE Std 141 (Red Book) – Electric Power Distribution
- Tipler, P. Physics for Scientists and Engineers
- Boylestad, R. Introductory Circuit Analysis
- Higgins & Fitzpatrick. Power Systems Quality
